| 916-300 Specifications (at 25°C) |
| Input Signal Frequency |
D-C |
| Input Impedance |
10 K Minimum |
|
Output Voltage Max.
|
±20.0 Volts DC |
| Output Current |
±6Amp. Continuous
±15 Amp. Peak |
| Current Limit Adjust |
0.4 to 15 Amp |
| Feedback |
Voltage or Current (Selectable) |
| Gain |
VOLTAGE FEEDBACK 20V/V
CURRENT FEEDBACK 0.5 A/V |
| Output Impedance |
0.1 Ohms (In Voltage Feedback Mode) |
| Dead spot |
±50 MICROVOLTS Referred to Input |
| Frequency Response |
Small Signal 10 KHz
Full Output 1KHz |
| Output OFFSET |
100mV DC |
| Temperature OFFSET |
10 Micro V/°C (Referred to Input) |
| Power Supply |
28±3 VDC (0.05 A Quiescent)
-15±2 VDC@20ma |
| Basic Operating Temp |
-55°C to 125°C |
| Power Output Derating |
1.25 WATTS/°C |

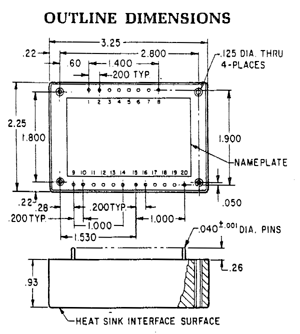

| Connections |
Plug in Pins |
| Environment Conditions |
VIBRATION 15G RMS (RANDOM)
SHOCK 50G (PEAK)
HUMIDITY TO 100%
ALTITUDE TO 50,000 ft |
